Tonke Explorer

Extreme comfort even in the most remote areas

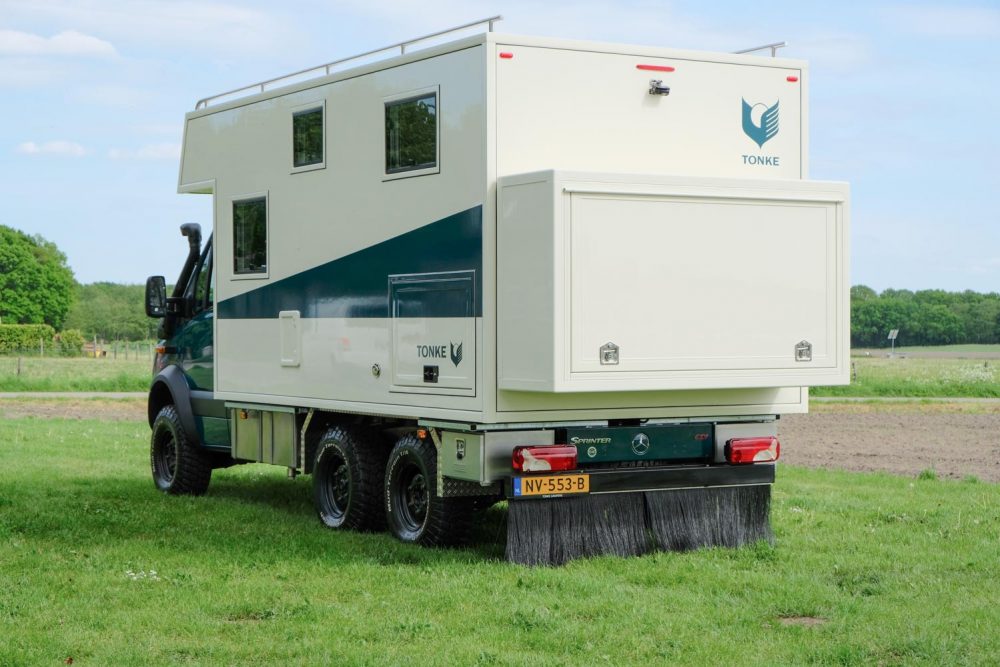

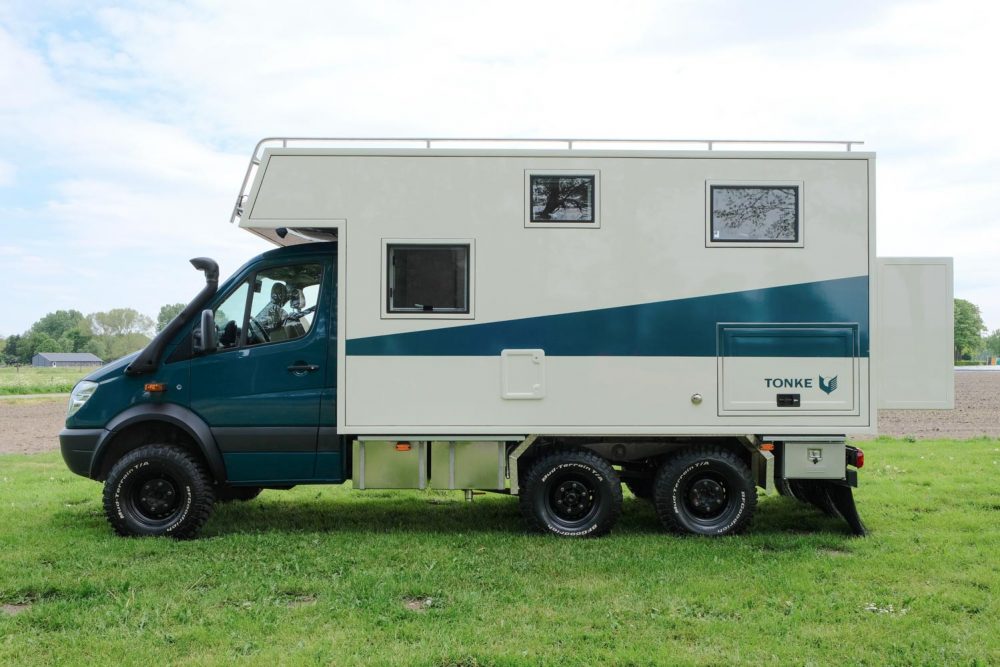

The Tonke Explorer is an expedition vehicle, based on the Mercedes Sprinter 516Cdi with 4×4 and a hi/low gear box (standard). Optionally this vehicle is also available as a 6×6 based on the Oberaigner conversion of the Mercedes Sprinter (see pictures). Thanks to the rigid Sprinter chassis the Explorer has excellent off-the-road properties and still have a passage to the driver cabin. This combination is rare, because most terrain trucks have flexible chassis that make a pass-through impossible (the car would break). The main advantage of a pass-through is efficient use of living space in relatively short lenght and the possibility to take passengers in a comfortable way. The Explorer in standard equipped for 4 perspons.

read more

The Explorer is slightly more comfortable than a truck-based expedition vehicle. Standard this camper has a gastank and cooking is on gas. There are solar pannels for authonomy. Heating and warm water is being provided by the diesel heater. The watertank has a capacity of 260 liter fresh water, which is enough for a long stay in a remote area. Optionally you can choose for the ‘LP-free’ system, which includes a heavy battery and converter to allow to do induction cooking and even airconditioning ‘off-grid’. For a more extensive explaination about this system, please go to Fieldsleeper International.

Specifications

Dimensions

  • LxWxH: 672 x 244 x 310cm (extended version 752cm, with roof airconditioning 334cm)
  • Headroom: 225 cm (shower 205cm)
  • Seats with seat belts: 4
  • Sleeping places: 4

Vehicle

  • Mercedes Sprinter 516 Cdi (4×4), optionally 519Cdi 4×4 of 719Cdi 6×6 (Oberaigner conversion)
  • Wheelbase: 366 cm (extended version 432cm)
  • 2.2Cdi diesel (optioneel 3.0Cdi V6 diesel)
  • Average usage: 7 km/l or 14l/100km
  • 160hp (optionally 190hp)
  • Euro VI emission standard
  • ABS / ASR / ESP standard
  • 7Gtronic automatic gear box
  • Heavy suspension
  • Electrical windows
  • Ambition package (airconditioning, heat resistant windows, cruise control, radio with Bluetooth and USB)
  • 3 front seats
  • Chrome grill
  • 100 liter diesel tank
  • Spare wheel
  • Rear view camera

Construction

  • Modern sandwich construction
  • Optimal isolation with XPS foam
  • Interior of the sandwich panel WBP glued mahogany plywood, exterior with high grade aircraft aluminium. Real mahagony as exterior is optionally
  • Total wall thickness: 38 mm (optionally 60 mm)
  • High quality anodized aluminum moldings
  • 38 mm thermal bridge free isolated roof with polyester gel coat on the exterior (optionally 60 mm)
  • Sandwich floor thickness: 65 mm
  • Very spacious garages
  • Garagedoors with double rubber seals
  • Side step of heavy American quality
  • Luxurious aluminum/polycarbonite windows (optionally Outbound expedition windows)
  • Curtain cassettes (with mosquito nets)

Living area

  • Robust furniture made of WPB plywood
  • Foldable table with real mahogany wooden top
  • Premium quality seat cushions for high seating and sleeping comfort
  • Luxurious fabric upholstery
  • Chrome, foldable clothes hanger
  • LED lightning in the ceiling and 2 chrome LED reading lamps of yacht building quality
  • All furniture is supplied in a color scheme as desired

Kitchen

  • Large, ergonomically arranged kitchen
  • All drawers are closed with chrome handles
  • Chrome tap with hot and cold water
  • Safe two-burner gas hop (optional induction or diesel)
  • Large double door marine fridge/freezer (cooling: 200 liters / freezer: 50 liters) with stainless steel front
  • 3 LED spotlights above kitchen counter

Sanitation

  • Spacious shower
  • Chrome tap with hot and cold water
  • Thetford toilet
  • Toilet tank accessible from the outside
  • Luxurious water tight toilet roll holder
  • Chrome foldable clothes hanger



Water facilities

  • Frost-free fresh water tank: 260 liters
  • Robust pump system
  • Chrome taps with hot and cold water in the kitchen and shower
  • All water pipes are installed in the frost-free zone
  • Grey water tank

Electrical facilities

  • Available in 110V or 230V sersion with associated sockets and extension cords
  • 1.3kWh AGM battery (1x 220Ah AGM battery) optional Li-on battery
  • 0.3 kW solar panel with advanced PPT regulator (expandable up to 0.9kW)
  • 25A charger
  • All interior lightning is LED
  • RCD

Heating/Airconditioning

  • Webasto dualtop diesel heating with hot air installation and integrated 11 liter boiler
  • Warm air supply in every part of the camper
  • Optional roof istallation air conditioning with heat strip (110V or 230V) and remote control

  • Colors of furniture and upholstery according customer wishes
  • Exterior in High grade aluminum, optional in real mahagony

Tonke in the wild

Our customers travel across the globe and we regularly receive their images
