Tonke Summit

Extreme comfort even in remote areas

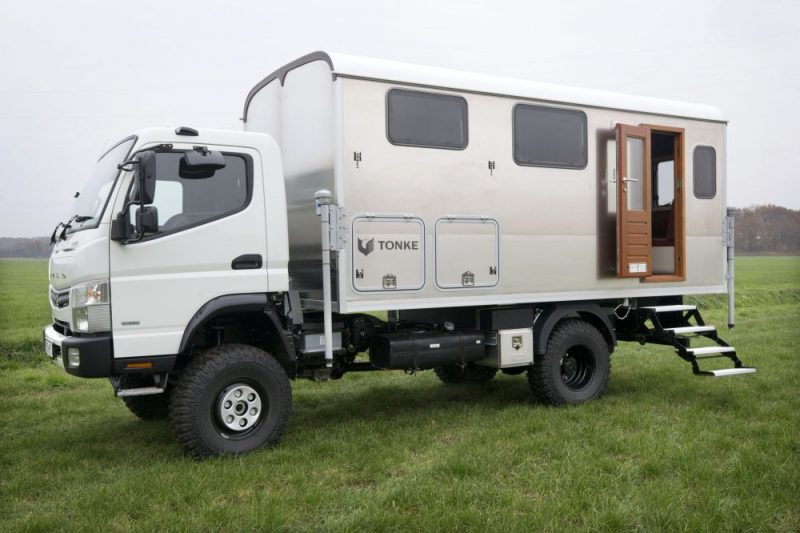

The Tonke Summit is a expedition vehicle, based on the large version of the Mitsubishi Fuso with standard 4×4 and a hi/low gear box. It is a small truck which is often chosen by world travellers. For what reason? Is is a very solid Japanes product, which is sold all over the world (so parts can be bought everywhere), is relatively affordable, and because of the short cab it is efficient in terms of body length. The structure is actually a Fieldsleeper, and therefore it is available with unloading system. We have developed a unique anti torsion system to make it suitable for all terrain.

The Tonke Summit is available in two lengths. Type 1 has a build-up length of 470cm and  a wheelbase of 341cm. Type 2 even has a build-up length of 530cm and a wheelbase of 386 cm.

The freshwater tank has a capacity of 260 liters for a long stay.

Optionally you can also choose the ‘LP-free’ system with a powerful battery and invertor which even allows you to make use of air conditioning and induction cooking ‘off-grid’. For a more extensive explanation about the ‘LP-free’ system, please go to Tonke Fieldsleeper International.

Specifications

Dimensions

  • LxWxH: 675cm x 233cm x 340cm (width is including unloading system. For transport in a sea container these can be removed, making the width 225 cm.)
  • Standing height: 196cm (higher upon request)
  • Seats with seat belts: 3
  • Sleeping places: 3

Transportation worldwide

  • Both the Tonke unit and the Mitsubishi Fuso fit (separately) into a sea container, which allows worldwide shipping in a safer, more efficient and cheaper way then a RoRo-Ship.

Vehicle

  • Mitsubishi Fuso 4×4
  • Wheelbase: 341 cm (long version 386 cm)
  • 3.0 diesel
  • Euro VI emission standard
  • 5 gearbox with Hi/Lo t
  • Freewheel hubs
  • Heavy suspension
  • Electrical windows
  • Airconditioning, heat resistant windows, cruise control, radio with Bluetooth and USB
  • 3 front seats
  • 100 liter diesel tank
  • Spare wheel

Construction

  • Modern sandwich construction
  • Optimal isolation with XPS foam
  • Interior of the sandwich panel WBP glued mahagony plywood, exterior with high grade airplane aluminum. Real mahagony exterior upon request.
  • Total wall thickness: 38 mm (optionally 60 mm)
  • High quality anodized aluminum moldings
  • 38 mm thermal bridge free isolated roof with polyester gel coat on the exterior (optionally 60 mm)
  • Sandwich floor thickness: 100 mm
  • Very spacious garages
  • Garagedoors with double rubber seals
  • Side step of heavy American quality
  • Luxurious aluminum/polycarbonite windows (optionally Outbound expedition windows)
  • Curtain cassettes (with mosquito nets)

Living area

  • Robust furniture made of WPB plywood
  • Foldable table with real mahogany wooden top
  • Premium quality seat cushions for high seating and sleeping comfort
  • Luxurious fabric upholstery
  • Chrome, foldable clothes hanger
  • LED lightning in the ceiling and 2 chrome LED reading lamps of yacht building quality
  • All furniture is supplied in a color scheme as desired

Kitchen

  • Large, ergonomically arranged kitchen
  • All drawers are closed with chrome handles
  • Chrome tap with hot and cold water
  • Safe two-burner gas hop (optional induction or diesel)
  • Large 90 liter fridge, possible to expand with a separate freezer.
  • 3 LED spotlights above kitchen counter

Sanitation

  • Spacious shower
  • Chrome tap with hot and cold water
  • Thetford toilet
  • Toilet tank accessible from the outside
  • Luxurious water tight toilet roll holder
  • Chrome foldable clothes hanger

Water facilities

  • Frost-free fresh water tank: 260 liters
  • Robust pump system
  • Chrome taps with hot and cold water in the kitchen and shower
  • All water pipes are installed in the frost-free zone
  • Grey water tank

Electrical facilities

  • Available in 110V or 230V sersion with associated sockets and extension cords
  • 165Ah AGM battery, optionally Li-on battery
  • 15A charger
  • All interior lightning is LED
  • RCD

Heating/Airconditioning

  • Truma gas heating with integrated 11 liter boiler (optionally Webasto dualtop diesel heater/boiler)
  • Warm air supply in every part of the camper
  • Optional roof istallation air conditioning with heat strip (110V or 230V) and remote control

  • Colors of furniture and upholstery according customer wishes
  • Exterior in High grade aluminum, optional in real mahagony or polyester

Tonke in the wild

Our customers travel across the globe and we regularly receive their images.
